Go ahead, take the road less traveled

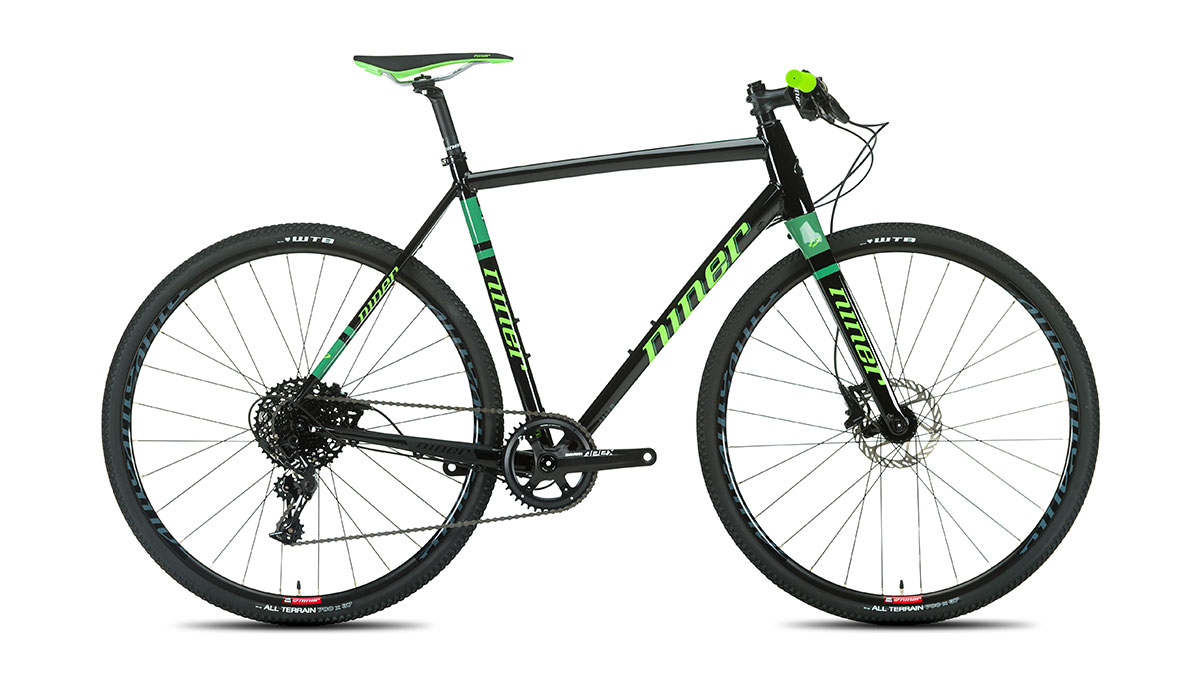

The RLT 9 Apex rules the domain between work and play
When a bunch of mountain bikers built the RLT, our first drop bar gravel bike, it was only a matter of time before people started throwing flat bars on it. And just like that, it became another office favorite. After seeing so many Ninerds turning our drop bar bike into a flat bar, do it all bike, we thought it was only right to make this build available to everyone.
Made to go the long way around
The RLT Flat Bar is everything you need and nothing you don't. It’s your daily commuter, grocery getter, fishing hole finder, dirt road ramblin’ bike that will get you from where you need to be, to where you’d rather be.
Niner carbon fork
Niner makes the best off-road rigid forks and now we bring this experience to dirt roads everywhere. The RLT 9 Apex continues our award-winning ways with a full carbon, gravel-tuned and custom painted Niner Carbon Fork. All Niner forks and frames are tested to mountain bike safety standards, so you can rest assured that it can handle even the rowdiest trips around town.

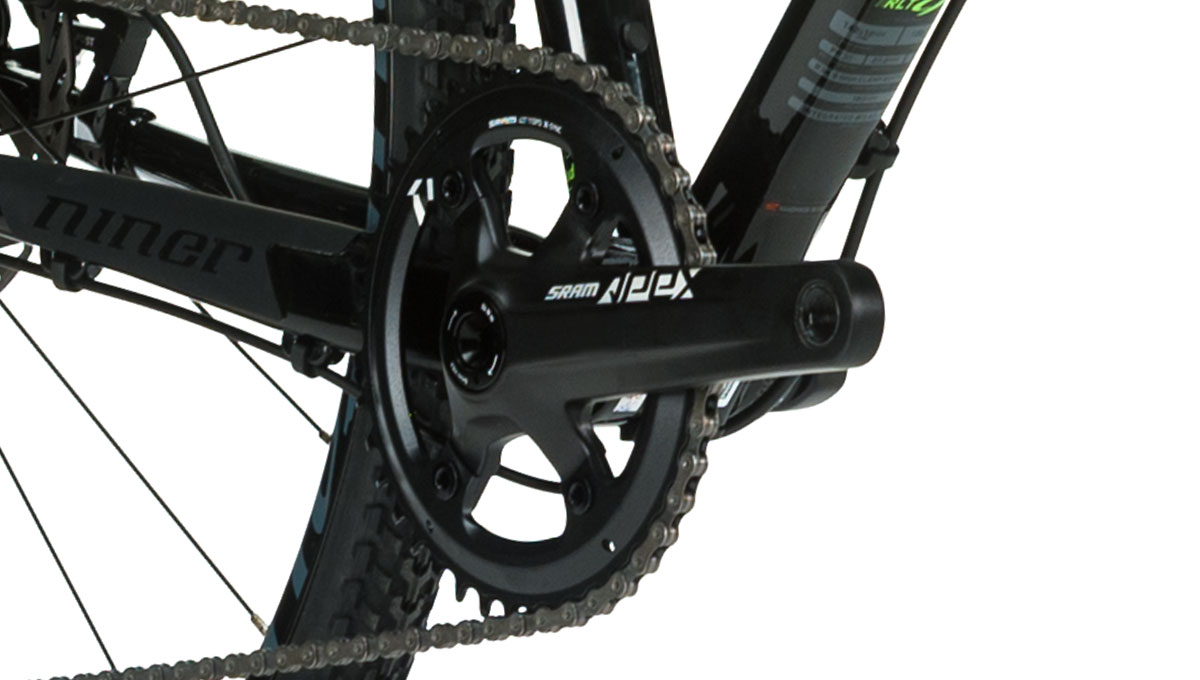

The standard PF30 bottom bracket shell offers both geared and single speed compatibility using the new BioCentric 30. Sometimes simplicity is the key to a triumphant journey, sometimes you need a bit of help from your (granny gear) friends. We’ll leave the gearing debate up to you.
Fire road geometry
Comfort is essential for any trip around town, regardless of length. The RLT 9 Apex’s slightly longer chainstay, lower bottom bracket, and slacker headtube angle are ideal for a stable ride on and off roads.
|Available frame sizes||47cm, 50cm, 53cm, 56cm, 59cm, 62cm||Available colors||Black/green|
|Frame||Niner aluminum||Fork||NINER FULL CARBON FORK, Q/R|
|Shock||N/A||Tubes / Sealant||TUBES|
|Front wheel||NINER CX ALLOY, Q/R FRONT, NINER GRAPHIC||Rear wheel||NINER CX ALLOY, Q/R REAR, NINER GRAPHIC|
|Front Tire||WTB ALL TERRAIN, 700 X 37||Rear tire||WTB ALL TERRAIN, 700 X 37|
|Brakes||SRAM LEVEL||Brake levers||SRAM LEVEL|
|Brake rotors||160/160MM G2CS ROTORS||Chain||SRAM PC1110|
|Front shifter||N/A||Rear shifter||SRAM APEX 1|
|Front derailleur||N/A||Rear derailleur||SHIMANO TIAGRA 4700 10SP|
|Cassette||SRAM PG1130 11-42T||Crankset||SRAM APEX 1 PF30 42T|
|Bottom bracket||PRESTINE THREAD-TOGETHER PF30 TO 24MM ALLOY||Saddle||NINER CUSTOM WITH CR-MO RAILS, EMBOSSED NINER GRAPHIC|

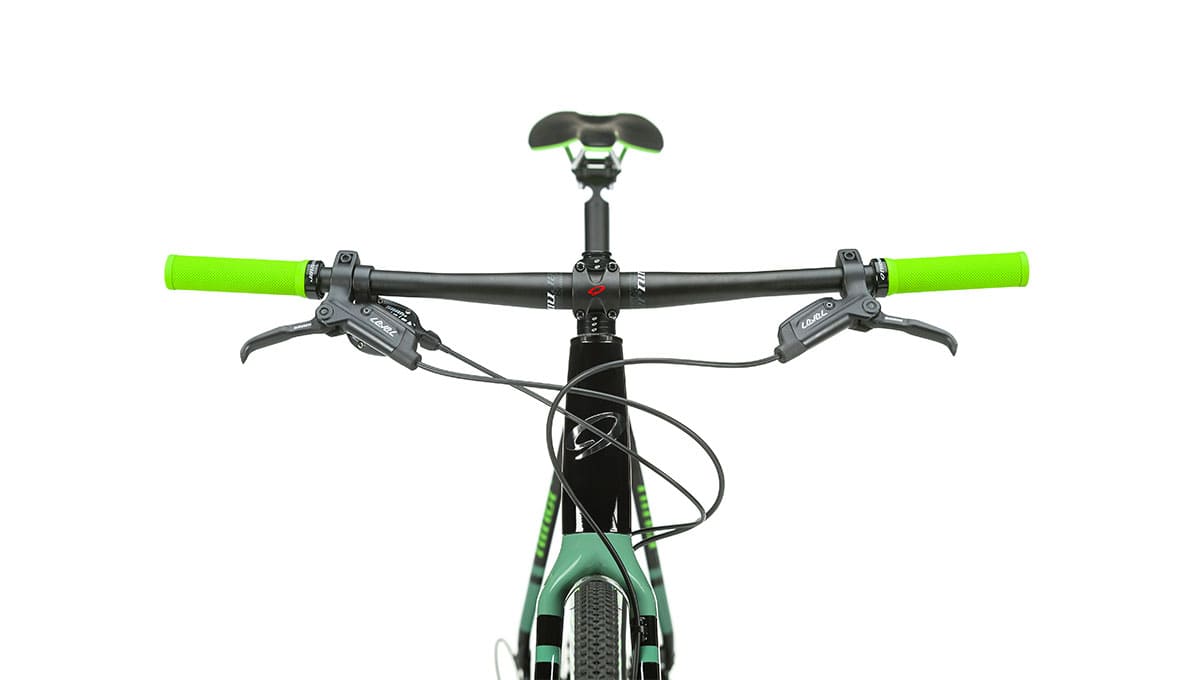

|Seatpost||NINER ALLOY SEAT POST, 400MM, NINER GRAPHIC||Handlebar||NINER ALLOY FLAT BAR, 760MM|
|Stem||NINER ALLOY STEM, NINER GRAPHIC||Headset||NINER INTEGRATED SHIS DESCRIPTION IS42/28.6|IS52/40|
|Grips||NINER GRRRIPS L/O NYLON||Approximate weight|
|frame mounts and fittings||2 Inner Triangle Bottle Mounts, rack and fender mounts.||Rear suspension travel||n/a|
|Maximum front suspension||n/a||Fork rake||45mm|
|Shock size||n/a||Shock mounting hardware||n/a|
|Suggested shock sag||n/a||Seatpost size||27.2mm|
|Seat collar size||31.8mm||Cable routing||internal|
|Front derailleur type||Headset size||1.125" X 1.5" TAPERED INTEGRATED (CAMPY STYLE) HEAD TUBE, HEADSET INCLUDED, CANE CREEK DESCRIPTION: IS42/28.6 | IS52/40|
|Pivot bearing specs||n/a||Chainring compatibility||Compatible With Standard 1X, 2X And 3X Systems|
|Maximum chainring size||n/a||Q-Factor||168mm|
|ISCG compatibility||no||Bottom bracket type||68MM PF30 BB SHELL (ADAPTORS REQUIRED FOR BSA TYPE BBs)|
|Biocentric 30 compatibility||yes||Brake mount type||post mount|
|Maximum rear rotor size||160mm||Rear wheel spacing||135x9mm|
|Rear wheel through-axle spec||standard quick release||Front wheel axle spacing||100x9mm|
|Front wheel through-axle spec||standard quick release||Max tire size||700x40c|
