Fit to take flight
With 120mm of trail-tuned CVA suspension, you’re cleared for takeoff.
Looking for a bike that ratchets up the fun factor but doesn’t bite back when there’s work to be done? Our playful JET 9 RDO is the ticket. With Niner’s [R]evolution geometry and 120mm of suspension travel, you’ll float up technical climbs, blast downhills, and fly smoothly over everything else.
Capability, meet versatility
When mountain bikers tell us they want one bike that does everything well, we steer them toward the JET 9 RDO. It’s our most popular mountain bike and it consistently earns accolades from media reviewers, everyday riders, and Niner athletes. By blending the best attributes of a dedicated cross-country bike with the suspension and geometry characteristics of a trail bike, we’ve made the most versatile bike we could imagine.
The JET 9 RDO is made to accept your choice of 29-er and 27.5-Plus wheels and tires. The frame geometry is made to manage both technical downhills and challenging climbs. And the suspension system is designed for a blend of efficiency and performance.
[R]Evolution geometry
Niner’s [R]Evolution geometry translates to modern trail manners when you need them most. The roomy cockpit has a comfortable reach for short stem lengths, giving you quick handling and plenty of maneuverability to blast through chunder and slash corners. And of course, the slack, 67-degree front end and long wheelbase contribute stability and self-confidence when you’re dropping into the steepest lines.
On the other hand, a steep 74-degree seat angle gets you centered over the BB for climbing. It’s paired nicely with the short 434mm chainstay length for better pedaling efficiency when you’re crawling up the steepest sections of trail.
CVA suspension
Niner’s Constantly Varying Arc, or CVA™, suspension design is a short dual-link, four-bar system unique to Niner, developed in house and patented. It’s built to be supple yet stable, controlling unwanted suspension movement with calibrated anti-squat, yet remaining active while climbing and descending. Courtesy of careful leverage ratio tuning, it’s sensitive to small bumps in the early stroke yet supportive in the mid-stroke, which gives riders a platform for pumping and popping off terrain. Going down, it’s consistent and controlled. With no need for heavy compression damping to control unwanted movement, CVA shocks are tuned for consistent, confidence inspiring behavior on descents.
CVA suspension is perfectly balanced, so the result is stable yet supple, active, ground-hugging traction in every situation - cranking uphill, ripping downhill, and everywhere in between.
RDO carbon fiber
Carbon fiber is common, but care, quality and attention to detail are not. Niner RDO carbon fiber is a cut above. We start with the best grades of raw carbon layered precisely according to the stress points on the frame structure. In construction, our process employs rigid internal molds and results in tighter, more consistent compaction of the carbon fabric. The result? Increased precision in wall thickness and reduced resin pooling in the final product. We can build more elaborate structures with better ride tuning, increased strength, outstanding durability, and less weight.
CVA suspension
Supple yet stable, and the confidence to drop into gnarly lines, knowing you’ll get consistency and control from top to bottom: that’s CVA suspension. Read More
RDO carbon fiber
Niner’s premium Race Day Optimized carbon fiber means more strength, higher stiffness, and less weight. Read More
Full Sleeve cable guides
No more fishin’. We built in end-to-end cable guides through the frame for easy installation and maintenance.

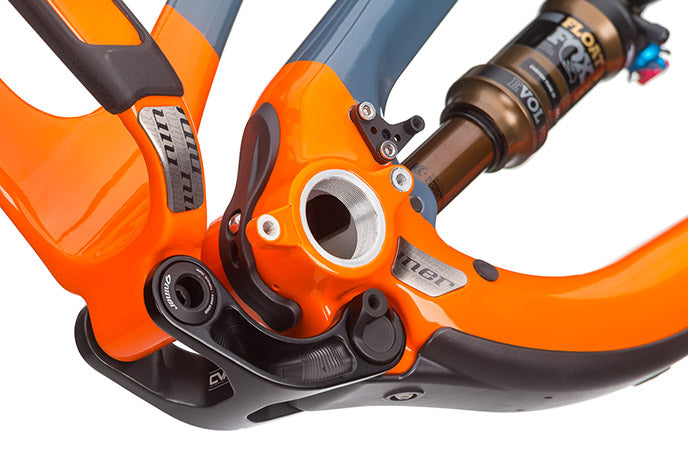

Enduro Max Black Oxide pivot bearings
We use the smoothest, most durable pivot bearings in the industry. Made by Enduro, they’re built for life. Read More
Protection where you need it
Factory installed, integrated frame protection to keep your ride safe from harm, even when you’re in over your head.
Lifetime warranty
Ride, race, rally. We have you covered with warranty service, small parts, and a support team that actually answers the phone.Read More
Tire clearance
Need room to roam? We got it. The JET 9 has clearance to run your choice of 29er or 27.5+ wheels and tires.
Specifications
Add SRAM AXS wireless electronic shifting, DT Swiss XMC carbon wheels, and a FOX 34 fork to our most versatile trail bike, and you're ready for takeoff. This JET is light, fast, and tough.
- DT Swiss XMC carbon wheels
- SRAM X01 Eagle AXS
- FOX 34 Float Factory FIT 4 EVOL fork, 130mm travel
| Available frame sizes | XS , S, M, L, XL | Available colors | LICORICE, TEAL/SLATE |
| Frame | Niner RDO carbon fiber, CVA suspension, 120mm travel, aluminum linkage, Enduro Max pivot bearings, Full Sleeve internal cable routing | Fork | FOX 34 FLOAT FACTORY FIT4 EVOL, 3 POSITION W/ ADJ, KASHIMA COAT, 130MM, 110X15MM, 44MM OFFSET |
| Shock | FOX FLOAT DPS FACTORY EVOL 3 POSITION W/ ADJUST, KASHIMA COAT | Tubes / Sealant | STANS NO TUBES SEALANT (2 X 2oz BOTTLES) |
| Front wheel | DT SWISS XMC 1200, 6 BOLT, 110X15MM FRONT | Rear wheel | DT SWISS XMC 1200, 6 BOLT, 148X12MM REAR |
| Front Tire | MAXXIS MINION DHF 3C/EXO/TR 2.5 WT FRONT | Rear tire | MAXXIS REKON 3C/EXO/TR 2.4 WT REAR |
| Brakes | SRAM G2 ULTIMATE | Brake levers | SRAM G2 ULTIMATE |
| Brake rotors | 180/180 CENTERLINE X ROTORS | Chain | SRAM XX1 EAGLE 12SP RAINBOW |
| Front shifter | N/A | Rear shifter | SRAM AXS EAGLE 12SP |
| Front derailleur | N/A | Rear derailleur | SRAM X01 AXS EAGLE 12SP |
| Cassette | SRAM EAGLE XG 1299, 10-50T RAINBOW | Crankset | SRAM X1 EAGLE CARBON DUB, 32T |
| Bottom bracket | SRAM DUB BSA THREADED | Saddle | NINER CUSTOM TR WITH CRN-TI RAILS, PRINTED NINER GRAPHIC |
| Seatpost | KS LEV SI (XS/S-100MM, M/L/XL-150MM) | Handlebar | RACE FACE NEXT R 800MM WIDE, 20MM RISE, 35MM CLAMP |
| Stem | RACE FACE TURBINE R 40MM, 35MM CLAMP | Headset | NINER INTERNAL ZS SHIS DESCRIPTION ZS44/28.6|ZS56/40 |
| Grips | NINER GRRRIPS L/O | Approximate weight | 24.2 lbs |
How to take our most versatile mountain bike to the next level? Add Shimano’s vaunted XTR kit, DT Swiss XMC carbon wheels, a FOX 34 fork, and Race Face NEXT R carbon cranks. It’s light, fast, and tough.
- DT Swiss XMC 1200 carbon wheels
- Race Face NEXT R carbon cranks
- Shimano M900 4-piston “Trail” brakes
| Available frame sizes | XS , S, M, L, XL | Available colors | LICORICE, TEAL/SLATE |
| Frame | Niner RDO carbon fiber, CVA suspension, 120mm travel, aluminum linkage, Enduro Max pivot bearings, Full Sleeve internal cable routing | Fork | FOX 34 FLOAT FACTORY FIT4 EVOL, 3 POSITION W/ ADJ, KASHIMA COAT, 130MM, 110X15MM, 44MM OFFSET |
| Shock | FOX FLOAT DPS FACTORY EVOL 3 POSITION W/ ADJUST, KASHIMA COAT | Tubes / Sealant | STANS NO TUBES SEALANT (2 X 2oz BOTTLES) |
| Front wheel | DT SWISS XMC 1200, CENTERLOCK, 110X15MM FRONT | Rear wheel | DT SWISS XMC 1200, CENTERLOCK, 148X12MM REAR |
| Front Tire | MAXXIS MINION DHF 3C/EXO/TR 2.5 WT FRONT | Rear tire | MAXXIS REKON 3C/EXO/TR 2.4 WT REAR |
| Brakes | SHIMANO XTR M9100 | Brake levers | SHIMANO XTR M9100 |
| Brake rotors | 180/180 MT900 ROTORS | Chain | SHIMANO XTR M9100 W/ QUICKLINK |
| Front shifter | N/A | Rear shifter | SHIMANO XTR M9100 12SP I-SPEC EV |
| Front derailleur | N/A | Rear derailleur | SHIMANO XTR M9100 SGS 12SP |
| Cassette | SHIMANO XTR M9100 12SP, 10-51T | Crankset | RACEFACE NEXT R CARBON 12SP, 32T |
| Bottom bracket | RACEFACE THREADED | Saddle | NINER CUSTOM TR WITH CRN-TI RAILS, PRINTED NINER GRAPHIC |
| Seatpost | KS LEV SI (XS/S-100MM, M/L/XL-150MM) | Handlebar | RACE FACE NEXT R 800MM WIDE, 20MM RISE, 35MM CLAMP |
| Stem | RACE FACE TURBINE R 40MM, 35MM CLAMP | Headset | NINER INTERNAL ZS SHIS DESCRIPTION ZS44/28.6|ZS56/40 |
| Grips | NINER GRRRIPS L/O TRAIL | Approximate weight | 24.2 lbs |
Our top of the line JET 9 RDO frame meets the best parts kit available. Roll lighter and faster, go farther and stay out longer on DT Swiss XMC 1200 carbon wheels and premium SRAM components.
- DT Swiss XMC 1200 carbon wheels
- FOX 34 Float Factory FIT 4 EVOL fork, 130mm travel
- Race Face bar and stem
| Available frame sizes | XS , S, M, L, XL | Available colors | LICORICE, TEAL/SLATE |
| Frame | Niner RDO carbon fiber, CVA suspension, 120mm travel, aluminum linkage, Enduro Max pivot bearings, Full Sleeve internal cable routing | Fork | FOX 34 FLOAT FACTORY FIT4 EVOL, 3 POSITION W/ ADJ, KASHIMA COAT, 130MM, 110X15MM, 44MM OFFSET |
| Shock | FOX FLOAT DPS FACTORY EVOL 3 POSITION W/ ADJUST, KASHIMA COAT | Tubes / Sealant | STANS NO TUBES SEALANT (2 X 2oz BOTTLES) |
| Front wheel | DT SWISS XMC 1200, 6 BOLT, 110X15MM FRONT | Rear wheel | DT SWISS XMC 1200, 6 BOLT, 148X12MM REAR |
| Front Tire | MAXXIS MINION DHF 3C/EXO/TR 2.5 WT FRONT | Rear tire | MAXXIS REKON 3C/EXO/TR 2.4 WT REAR |
| Brakes | SRAM G2 RSC | Brake levers | SRAM G2 RSC |
| Brake rotors | 180/180 SRAM CENTERLINE ROTORS | Chain | SRAM X01 EAGLE 12SP |
| Front shifter | N/A | Rear shifter | SRAM X01 EAGLE 12SP |
| Front derailleur | N/A | Rear derailleur | SRAM X01 EAGLE 12SP |
| Cassette | SRAM EAGLE XG 1295, 10-50T | Crankset | SRAM X1 EAGLE CARBON DUB 32T CNC RING |
| Bottom bracket | SRAM DUB BSA THREADED | Saddle | NINER CUSTOM TR WITH CRN-TI RAILS, PRINTED NINER GRAPHIC |
| Seatpost | KS LEV SI (XS/S-100MM, M/L/XL-150MM) | Handlebar | RACE FACE NEXT R 800MM WIDE, 20MM RISE, 35MM CLAMP |
| Stem | RACE FACE TURBINE R 40MM, 35MM CLAMP | Headset | NINER INTERNAL ZS SHIS DESCRIPTION ZS44/28.6|ZS56/40 |
| Grips | NINER GRRRIPS L/O TRAIL | Approximate weight | 26.7 lbs |
This 4-Star JET 9 RDO is dressed for success with a 130mm travel suspension fork, Shimano XT drivetrain, and DT Swiss M1900 wheels. No excuses - get out and ride!
- DT Swiss M1900 wheels
- FOX 34 Float Factory FIT 4 EVOL fork w/Kashima coat, 130mm travel
- Shimano XT 4-piston "trail" brakes
| Available frame sizes | XS , S, M, L, XL | Available colors | LICORICE, TEAL/SLATE |
| Frame | Niner RDO carbon fiber, CVA suspension, 120mm travel, aluminum linkage, Enduro Max pivot bearings, Full Sleeve internal cable routing | Fork | FOX 34 FLOAT FACTORY FIT4 EVOL, 3 POSITION W/ ADJ, KASHIMA COAT, 130MM, 110X15MM, 44MM OFFSET |
| Shock | FOX FLOAT DPS FACTORY EVOL 3 POSITION W/ ADJUST, KASHIMA COAT | Tubes / Sealant | STANS NO TUBES SEALANT (2 X 2oz BOTTLES) |
| Front wheel | DT SWISS M1900 SPLINE 30, DT370 CENTERLOCK HUB 110X15MM FRONT | Rear wheel | DT SWISS M1900 SPLINE 30, DT370 CENTERLOCK HUB 148X12MM REAR |
| Front Tire | MAXXIS MINION DHF 3C/EXO/TR 2.5 WT FRONT | Rear tire | MAXXIS REKON 3C/EXO/TR 29x2.4 WT or REKON+ DC/EXO/TR 27.5x2.8 |
| Brakes | SHIMANO XT M8100, METAL PAD W/ FIN | Brake levers | SHIMANO XT M8100 |
| Brake rotors | 180/180 MT800 ROTORS | Chain | SHIMANO XT M8100 W/ QUICKLINK |
| Front shifter | N/A | Rear shifter | SHIMANO XT M8100 12SP I-SPEC EV |
| Front derailleur | N/A | Rear derailleur | SHIMANO XT M8100 SGS 12SP |
| Cassette | SHIMANO XT M8100 12SP, 10-51T | Crankset | RACEFACE NEXT R CARBON 12SP, 32T |
| Bottom bracket | RACEFACE THREADED | Saddle | NINER CUSTOM TR WITH CRN-TI RAILS, PRINTED NINER GRAPHIC |
| Seatpost | KS LEV SI (XS/S-100MM, M/L/XL-150MM) | Handlebar | RACE FACE NEXT R 800MM WIDE, 20MM RISE, 35MM CLAMP |
| Stem | RACE FACE TURBINE R 40MM, 35MM CLAMP | Headset | NINER INTERNAL ZS SHIS DESCRIPTION ZS44/28.6|ZS56/40 |
| Grips | NINER GRRRIPS L/O TRAIL | Approximate weight | 28.1 lbs |
Expect the best in a 3-star build from Shimano's new XT drivetrain. Mated to the JET 9 RDO frame and a FOX suspension fork, every feature of our fun-seeking full suspension trail bike is fully expressed.
- DT Swiss M1900 wheels
- FOX 34 Float Performance Elite FIT 4 EVOL fork, 130mm travel
- Shimano XT 4-piston "trail" brakes
| Available frame sizes | XS , S, M, L, XL | Available colors | LICORICE, TEAL/SLATE |
| Frame | Niner RDO carbon fiber, CVA suspension, 120mm travel, aluminum linkage, Enduro Max pivot bearings, Full Sleeve internal cable routing | Fork | FOX 34 FLOAT PERFORMANCE ELITE FIT4 EVOL, 3 POSITION W/ ADJ,, 130MM, 110X15MM, 44MM OFFSET |
| Shock | FOX FLOAT DPS PERFORMANCE EVOL 3 POSITION | Tubes / Sealant | STANS NO TUBES SEALANT (2 X 2oz BOTTLES) |
| Front wheel | DT SWISS M1900 SPLINE 30, DT370 CENTERLOCK HUB 110X15MM FRONT | Rear wheel | DT SWISS M1900 SPLINE 30, DT370 CENTERLOCK HUB 148X12MM REAR |
| Front Tire | MAXXIS MINION DHF 3C/EXO/TR 2.5 WT FRONT | Rear tire | MAXXIS REKON 3C/EXO/TR 2.4 WT REAR |
| Brakes | SHIMANO XT M8100, METAL PAD W/ FIN | Brake levers | SHIMANO XT M8100 |
| Brake rotors | 180/180MM SM-RT70 ROTORS | Chain | SHIMANO SLX M7100 W/ QUICKLINK |
| Front shifter | N/A | Rear shifter | SHIMANO XT M8100 12SP I-SPEC EV |
| Front derailleur | N/A | Rear derailleur | SHIMANO XT M8100 SGS 12SP |
| Cassette | SHIMANO SLX M7100 12SP, 10-51T | Crankset | RACEFACE TURBINE 12SP, 32T |
| Bottom bracket | RACEFACE THREADED | Saddle | NINER CUSTOM TR WITH CR-MO RAILS, PRINTED NINER GRAPHIC |
| Seatpost | KS LEV SI (XS/S-100MM, M/L/XL-150MM) | Handlebar | RACE FACE AEFFECT R 780MM WIDE, 20MM RISE, 35MM CLAMP |
| Stem | RACE FACE AEFFECT R 40MM, 35MM CLAMP | Headset | NINER INTERNAL ZS SHIS DESCRIPTION ZS44/28.6|ZS56/40 |
| Grips | NINER GRRRIPS L/O TRAIL | Approximate weight | 28.8 lbs |
Hit the trail without a hit to your wallet. Thanks to SRAM’s outstanding SX Eagle drivetrain, we extract every ounce of JET 9 RDO performance at an affordable price level.
- Niner alloy wheels
- FOX 34 Float Rhythm GRIP EVOL fork, 130mm travel
- SRAM Level brakes
| Available frame sizes | XS , S, M, L, XL | Available colors | LICORICE, TEAL/SLATE |
| Frame | NINER RDO CARBON FIBER, CVA SUSPENSION, 120MM TRAVEL, ALUMINUM LINKAGE, ENDURO MAX PIVOT BEARINGS, FULL SLEEVE INTERNAL CABLE ROUTING | Fork | FOX 34 FLOAT RHYTHM GRIP EVOL, SWEEP ADJUST, 130MM, 110X15MM, 44MM OFFSET |
| Shock | FOX FLOAT DPS PERFORMANCE EVOL 3 POSITION | Tubes / Sealant | STANS NO TUBES SEALANT (2 X 2oz BOTTLES) |
| Front wheel | NINER ALLOY, 110X15MM FRONT, NINER GRAPHIC | Rear wheel | NINER ALLOY, 148X12MM REAR, NINER GRAPHIC |
| Front Tire | MAXXIS MINION DHF 3C/EXO/TR 29x2.5 WT or REKON+ DC/EXO/TR 27.5x2.8 | Rear tire | MAXXIS REKON 3C/EXO/TR 2.4 WT REAR |
| Brakes | SRAM LEVEL | Brake levers | SRAM LEVEL |
| Brake rotors | 180/160MM G2CS ROTORS | Chain | SRAM SX EAGLE 12SP |
| Front shifter | N/A | Rear shifter | SRAM SX EAGLE 12SP |
| Front derailleur | N/A | Rear derailleur | SRAM SX EAGLE 12SP |
| Cassette | SRAM PG 1210 11-50T | Crankset | SRAM SX EAGLE DUB 32T |
| Bottom bracket | SRAM DUB BSA THREADED | Saddle | NINER CUSTOM TR WITH CR-MO RAILS, PRINTED NINER GRAPHIC |
| Seatpost | KS LEV SI (XS/S-100MM, M/L/XL-150MM) | Handlebar | RACE FACE AEFFECT R 780MM WIDE, 20MM RISE, 35MM CLAMP |
| Stem | RACE FACE AEFFECT R 40MM, 35MM CLAMP | Headset | NINER INTERNAL ZS SHIS DESCRIPTION ZS44/28.6|ZS56/40 |
| Grips | NINER GRRRIPS L/O NYLON FLANGED | Approximate weight | 29.6 lbs |
Build it your way with the JET 9 RDO frame-only option. RDO carbon fiber keeps the platform light and stiff, Full Sleeve internal cable routing makes it easy to build, and Boost hub spacing gives you freedom for all the wheel and tire options you could want.
| Available frame sizes | XS , S, M, L, XL | Available colors | LICORICE, TEAL/SLATE |
| Frame | Niner RDO carbon fiber, CVA suspension, 120mm travel, aluminum linkage, Enduro Max pivot bearings, Full Sleeve internal cable routing |
We make every effort to publish accurate build specs, however Niner Bikes reserves the right to make substitutions or changes to bike assembly specification at any time without notice or warning. Published approximate weights are for size medium (53cm) and may vary by +/- 5% due to manufacturing tolerances.
